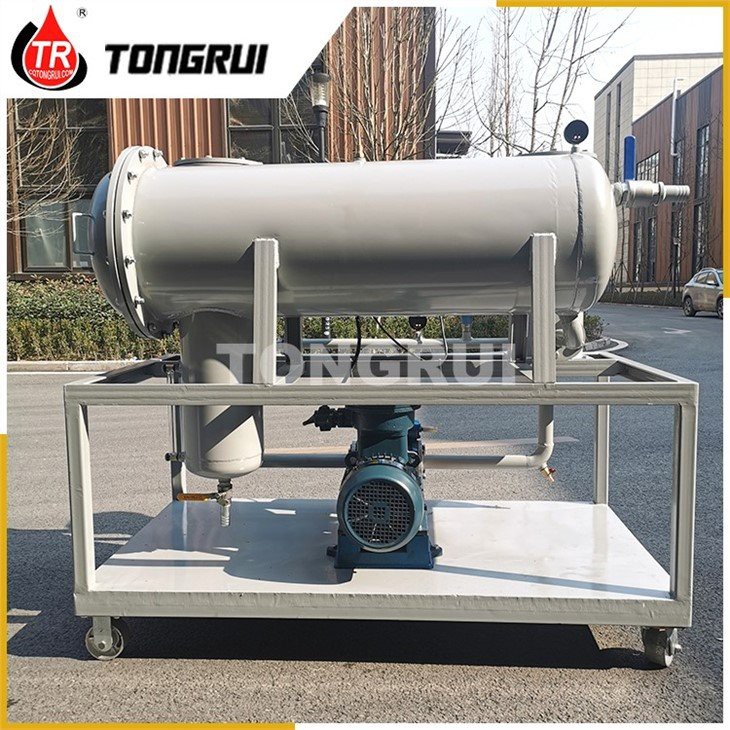

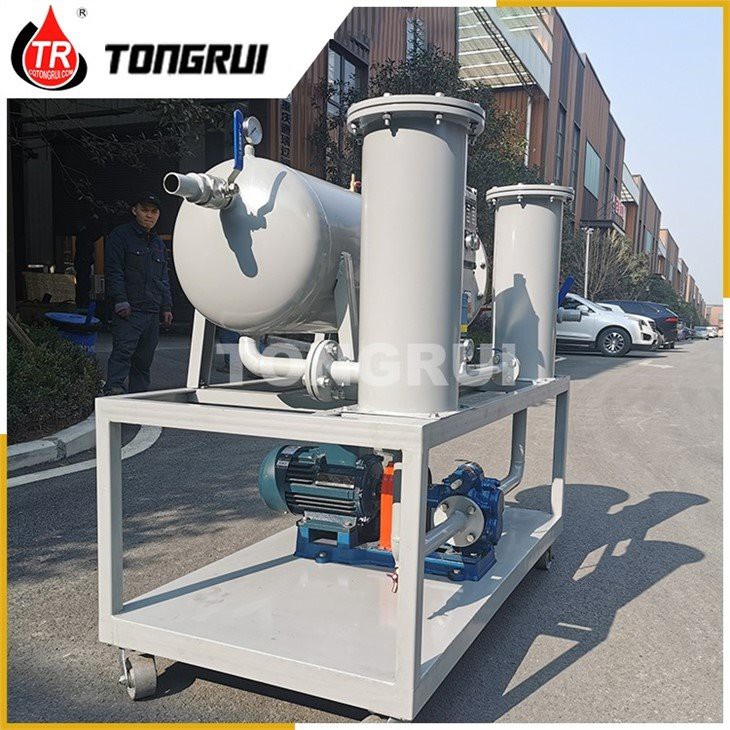

Product Overview:
The ZJD-F series fuel oil purifier stands as a highly specialized solution for efficiently and rapidly separating water from various types of oils such as diesel fuel, diesel oil, fuel oil, and light oil. This purifier finds its niche as a vital component for fuel oil purifier in ship vessels.
Operational Mechanism:
The waste oil is initially directed through the first filter to eliminate large impurities. Subsequently, the oil is pumped into a finer filter to remove smaller impurities. Following this, the oil enters an aggregation separator that adopts molecular separation technology, along with a water separator. These components collaboratively facilitate the separation of dissolved water from free water.
Specifications
|
Product Specifications |
|||||||||
|
Item |
Unit |
ZJD-F-10 |
ZJD-F-20 |
ZJD-F-30 |
ZJD-F-50 |
ZJD-F-80 |
ZJD-F-100 |
ZJD-F-200 |
ZJD-F-300 |
|
Flow rate |
L/H |
10 |
20 |
30 |
50 |
80 |
100 |
200 |
300 |
|
Working pressure |
Mpa |
≤0.35 |
|||||||
|
Water content |
ppm |
≤300 |
|||||||
|
Filtering precision |
µm |
3~5(or as per requirement) |
|||||||
|
Demulsification value |
min |
≤15 |
|||||||
|
Mechanical impurities |
% |
0.05~0.005(GB/T511) |
|||||||
|
WorKing Noise |
dB(A) |
≤75 |
≤82 | ||||||
|
Power |
kW |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
Equipment Weight |
Kg |
85 |
100 |
130 |
150 |
180 |
200 |
380 |
560 |
Key Attributes:
1. The ZJD-F series fuel oil purifier in ship employs an innovative oil-water separator that eliminates the need for heating. Notably, its dehydration efficiency surpasses other purifier types by over 25 times.
2. Ensures that oil specifications remain intact without any degradation or deterioration, attributed to the absence of heating.
3. Streamlined operation, allowing automatic online discharge of water without requiring constant operator presence, thus enhancing user-friendliness.
4. Delivers cost-effective operation, with expenses estimated to be 50% lower compared to vacuum purifiers, centrifugal purifiers, and filter presses.
5. Incorporates a high-precision FH rectangle filtration system constructed from top-grade stainless steel sourced from Japan, boasting a filtering precision capable of achieving 3-5 microns.
Working principle
The waste oil first enter the 1st filter, big impurities will be remove, and then the oil through the oil pump into the fine
filter to remove the small impurities, after that, the oil enter aggregation separator (adopt the molecule separating technology)
and water separator, separate the dissolved water and free water.
Comprehensive Services:
1. Comprehensive support, including installation, guidance, and training, is offered through our international service team.
2. Maintenance and replacement services are readily available as needed.
3. Proactive alerts regarding the service life of wear-and-tear components are provided, with options for replacement.
4. Detailed installation guidance extends to both domestic and international customers.
5. Product tracking services are extended for a 12-month period, with a commitment to lifelong assistance.
6. Expert guidance is provided for determining optimal market strategies for the final oil product.
