Application:
ZJD series hydraulic oil purifier is designed according to different kind oil, with roots pump and vacuum pump, so the vacuum is very high. The large water high vacuum special dehydration filter is particularly suitable for high water content turbine oil, hydraulic oil, refrigeration oil and the need to remove large amounts of water (10% -50% water) and severe emulsification and precision Other lubricants to filter impurities.
ZJD hydraulic oil purifier large water high vacuum dedicated dewatering filter is widely used in electric power, metallurgy, mining, machinery, chemicals, transportation, manufacturing, food and other industries, the unqualified hydraulic oil, hydraulic transmission oil, refrigeration oil, air compressor oil, gear oil, heat treatment oil, anti-wear hydraulic oil, especially emulsified oil, oil and other excessive oil waste oil, sewage oil, injection molding machine oil, cylinder oil, textile machinery oil, high-precision oil regeneration filter purification treatment.
Technical Index
|
Item |
Unit |
ZJD-6 |
ZJD-10 |
ZJD-20 |
ZJD-30 |
ZJD-50 |
ZJD-75 |
ZJD-100 |
ZJD-150 |
ZJD-200 |
||||||
|
Flow rate |
L/H |
360 |
600 |
1200 |
1800 |
3000 |
4500 |
6000 |
9000 |
12000 |
||||||
|
Vacuum degree |
Mpa |
-0.06 ～ -0.095 |
||||||||||||||
|
Working pressure |
Mpa |
≤0.4 |
||||||||||||||
|
Working temperature |
℃ |
0 ～ 100 |
||||||||||||||
|
Power supply |
|
380V/50Hz（or as per requirement） |
||||||||||||||
|
Noise |
dB(A) |
≤75 |
≤78 |
≤80 |
≤82 |
|||||||||||
|
Heating power |
kW |
9 |
15 |
18 |
30 |
45 |
60 |
96 |
120 |
135 |
||||||
|
Total power |
kW |
11 |
17 |
21 |
33 |
48 |
65 |
102 |
135 |
147 |
||||||
|
Inlet&outlet size |
mm |
15 |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
||||||
|
Weight |
Kg |
350 |
500 |
550 |
600 |
750 |
850 |
1000 |
1500 |
2000 |
||||||
|
Size(mm) |
L |
mm |
1100 |
1300 |
1350 |
1350 |
1350 |
1400 |
1650 |
1750 |
1850 |
|||||
|
W |
mm |
950 |
900 |
950 |
1000 |
1100 |
1100 |
1000 |
1400 |
1500 |
||||||
|
H |
mm |
1350 |
1600 |
1650 |
1650 |
1700 |
1750 |
1750 |
1950 |
2000 |
||||||
The final oil after treatment:
The demulsification value is 15min, the water content will be trace, the final gas content is about o.1%, the cleanness can reach NAS6~8 (NAS1638), filtering accuracy is about 5µm. If your oil is waste engine oil, which will be a little different, the filter precision will be a little lower than normal factory lube oil.
Optional spare parts
1) Imported parts (Optional imported brand vacuum pump, motor pumps, filter components,
2) Electrical components, instruments)
3) Smart Flow meter (optional)

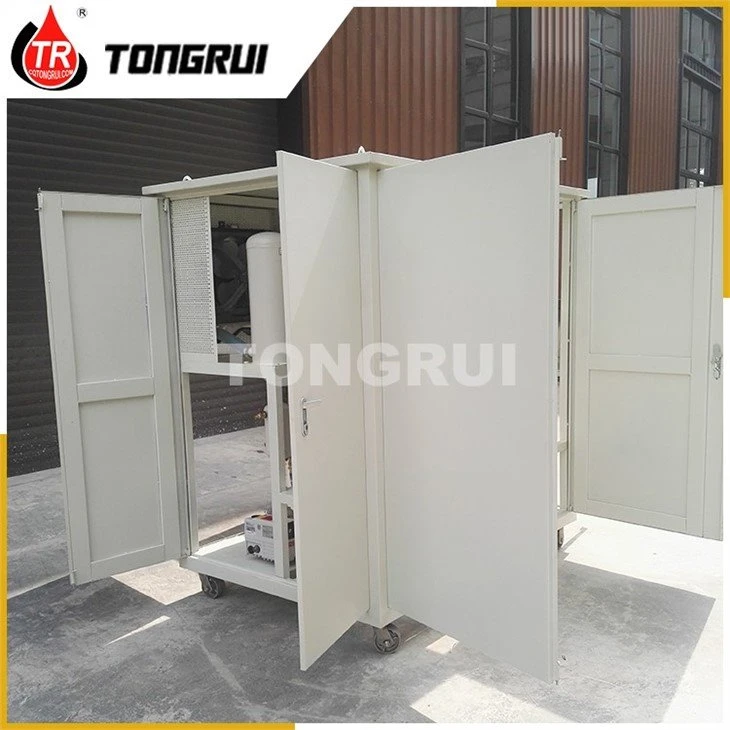

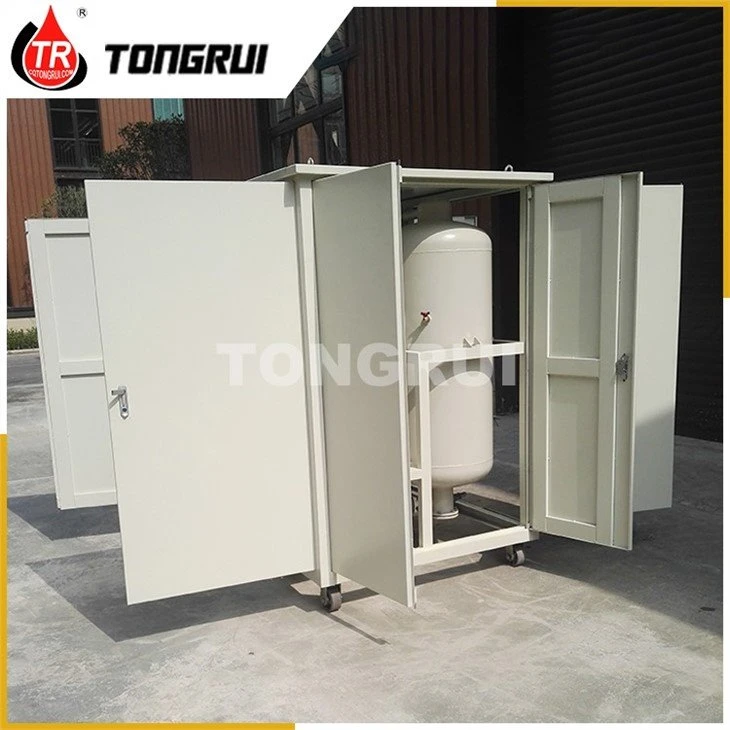

4) It can be made into a fully enclosed, shed cover type, car type
5) According to the working site, select the appropriate explosion-proof grade BT4 or CT4ExdII ExdI, on-line water meter (optional), BK pressure plate frame oil filter (in practice, can be matched, can make the oil clean filtration efficiency Improve, and reduce the consumption rate of filter consumables) (optional)
Delivery:
Packaged in strong wooden case, usually delivery time is 1~5work days, if the machine is in stock, then after full payment, it can be delivered right now. For the delivery agency, you can choose yours or ours, both ok. We have years experience for the export, then we can help you for that. Reach time to your side, depends on your own country. If time is urgent, you can choose delivering by air.
Hydraulic oil purifier pictures:
