Product Information:

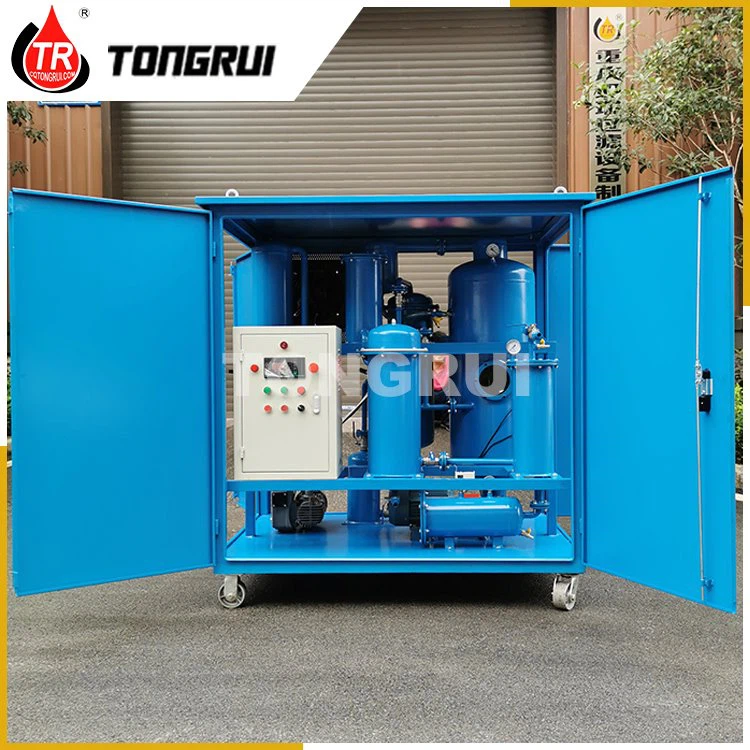

ZJD lubricant oil recycling equipment is widely applied in electric power, metallurgy, mines, machinery, chemical engineering, traffic, manufacturing, food industry, to process various used lubrication oils, such as gear oil, engine oil, hydraulic oil, freezer oil, compressor oil, vacuum pump oil, internal-combustion oil, heat treating oil. It can quickly remove impurities, water, gas, tiny.
Technical Paremeter:
Index name | Unit | ZJD-10 | ZJD-20 | ZJD-30 | ZJD-50 | ZJD-75 | ZJD-100 | ZJD-150 |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 |
vacuum degree | Mpa | -0.06~0.095 | ||||||
working pressure | Mpa | ≤0.4 | ||||||
temperature range | C | 0-100 | ||||||
water content | PPM | ≤80 | ||||||
cleaness | NAS | ≤6(class) | ||||||
gas content | % | ≤0.1 | ||||||
impurities content | 3-5micro | |||||||
power supply | 380V/220V | |||||||
noise | dB(A) | ≤70 | ||||||
demulsifying value | MIN | NEW OIL | ||||||
heating power | KW | 36 | 40 | 45 | 72 | 80 | 90 | 120 |
total power | KW | 38 | 42 | 47 | 75 | 87 | 101 | 135 |
diameter | MM | 25 | 25 | 25 | 32 | 42 | 50 | 50 |
weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 |
Characteristics:
1 Effectively remove the iron, flake, dust, impurities, water and organic substance from the inferior oil. Moreover, lubricant oil recycling equipment can eliminate organic and inorganic acid to recover the performance of lubricant oil.
2 Strong demulsifying capability, which could easy to separate the massive moisture contents, also easy to get rid of the little tiny water from oil.
3 Adopt high precision and stainless steel FH rectangle filtration system that import from Japan.
4 Utilize Tongrui‘s own invented technology of H, P, M macromolecule material, which can reduce 1 or 2 color code of oil, and especially fit to high viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil etc.
Oil index after treatement
Oil index after treatement | ||
Demulsification | min | ≤15min |
Gas content | % | ≤0.1% |
water content | % | Trace(no) |
cleanness | nas | ≤6 |
precision | µm | ≤µm(or customer advice) |

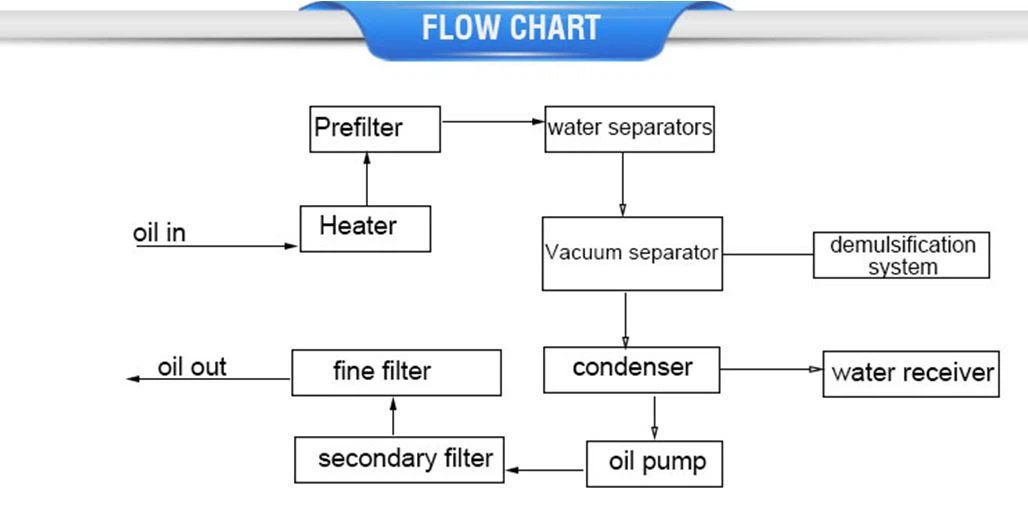

Flow Chart
Optional Customized Design As Per Client’s Requirements:
(1) PLC intelligent control with touch screen operation and operation status dynamic display.
(2) Online moisture tester, online particle counter and online flow meter with adding-up function.
(3) Frequency converter for free adjustment of flow rate
(4) The whole structure of lubricant oil recycling equipment: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of the canvas, etc.
Product packaging
Powerful wooden box, the general delivery time is 1 ~ 5 working days, if the machine is in stock after the full payment can be shipped. For shipping companies, you can choose yours or ours, We have many years of export experience, then we can help you. The load port time depends on your own country. If you have no time, you can choose delivery by air.
