Application:

This hydraulic oil water separator by vacuum system and filter system ,It is applied to purify various high-precision lubricating oil such as hydraulic oil, mechanical oil, coolant oil, gear oil, heat treatment oil,industrial oil and so on.



Advantage:

This hydraulic oil water separator can fast degas, dewater, and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.



Technical specification:

Item		Unit	ZJD-6		ZJD-10			ZJD-20		ZJD-30		ZJD-50		ZJD-75		ZJD-100	ZJD-150	ZJD-200
Flow rate		L/H	360		600			1200		1800		3000		4500		6000	9000	12000
Vacuum degree		Mpa	-0.06 ～ -0.095
Working pressure		Mpa	≤0.4
Working temperature		℃	0 ～ 100
Power supply			380V/50Hz（or as per requirement）
Noise		dB(A)	≤75								≤78				≤80		≤82
Heating power		kW	9			15			18		30		45		60	96	120	135
Total power		kW	11			17			21		33		48		65	102	135	147
Inlet&outlet size		mm	15			25			25		25		32		42	50	50	60
Weight		Kg	350			500			550		600		750		850	1000	1500	2000
Size(mm)	L	mm	1100			1300			1350		1350		1350		1400	1650	1750	1850
	W	mm	950			900			950		1000		1100		1100	1000	1400	1500
	H	mm	1350			1600			1650		1650		1700		1750	1750	1950	2000
Oil index after treatment
Demulsification value				min			≤15min
Gas content				%			≤0.1%
Water content				%			Trace(no)
Cleanness				NAS			≤6
Precision				µm			≤5µm（or customer advice）

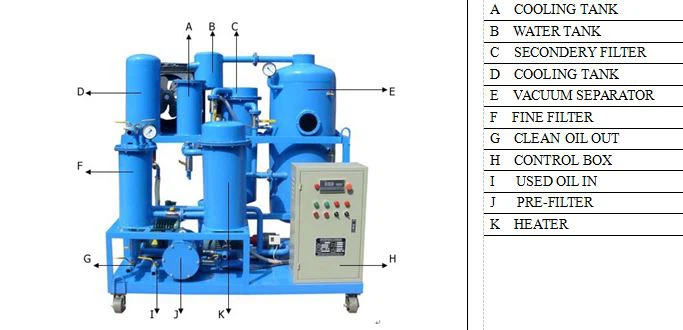

Working principe

When the hydraulic oil water separator starts, firstly contaminated oil enter into heater, secondly flowed into pre-filter under the difference pressure, in which the large impurities are removed. Thirdly oil goes into intermediate filter. Fourthly oil flow into water separator, the water separator adopts a special skill which changes the change the impaction of oil and water

to speed up trace water and coagulate big water which is separated from oil and stored in water content. After that, oil passes through the fine filter and fine particles of matters is

removed during the process. finally oil flows into vacuum pump which use stereo-evaporation removing residual trace of water and steam is condensed in the condenser or expelled out by the vacuum system. the oil was transported out by oil pump. The purification process has finished.

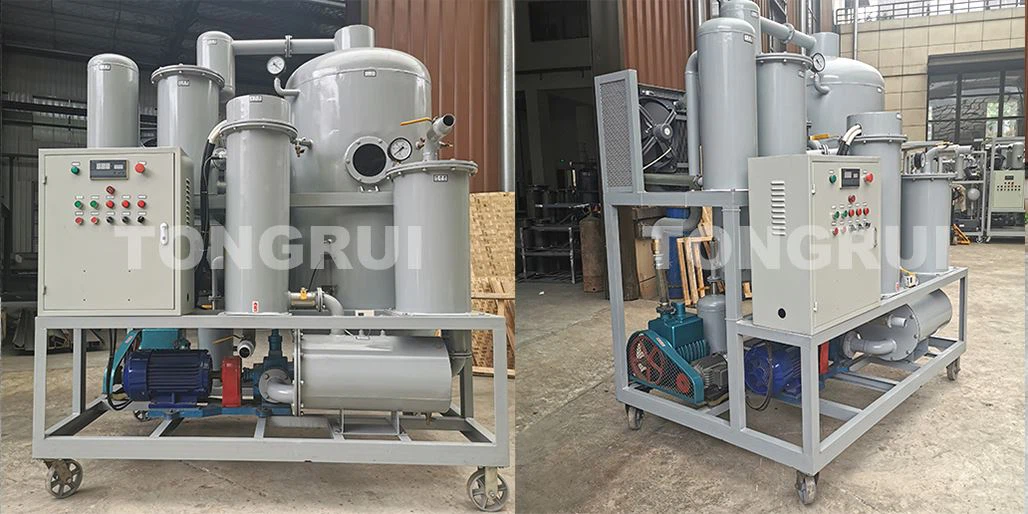

Hydraulic oil water separator pictures:
