We will win the greatest satisfaction of our customers with high-quality and low-cost Fuel Oil Purification, Waste Oil Distillation Plant, Transformer Oil Dehydration Machine and fast and thoughtful supply chain services. Dedicated to make products and services more excellent, this is our quality philosophy that we have been abiding by. Our basic market concept is to extend professional services. We have long been fulfilling our public commitment to contribute to the progress and development of society and the well-being of the people of the world through our business activities. We are adhering to the tenet of "make customers more satisfied when they use it than when they buy". Every customer's satisfaction with the use of our products will bring us a great sense of accomplishment. Our goal is to provide customers with competitive prices. Provide first-class quality products.
Product Function:
ZJD-K model oil purifier machine is used to filter and separate water,impurities and gas,especially remove big quantity impurities,such as fine powders,metal powders,coal powder etc. Suspended impurities,floccule,fibers(paper and cotton wool) from hydraulic oil, gear oil,injection molding machine oil, vacuum pump oil, or the oil from paper industry,smelting and mining industry.
ZJD-K model is a high filtration accuracy requirement.This machine also can work together with decoloration system,which can adsorb and regenerate the oil, reduce the acid value and change color.
Technical Specifications
Feature:
1. ZJD-K oil purifier machine is composed of ZJD vacuum hydraulic oil purifier and BK press filter machine,the two functions can be worked together or worked separately.
2. Four-stages filtration system, which can effectively filter out suspended particles and fine powdery impurities from the oil.
3. Three-dimensional complex type flash evaporation and aggregation separation,which can remove water and gas rapidly and thoroughly.
4. Strong wind condensing system: can quickly condense water vapor into water, increase the dehydration rate and reduce the vacuum pump load.
5. Infrared Oil-level Controlling System
1)The oil-level floating ball or infrared liquid level automatic controller system are installed in the vacuum vessel to control
the oil level so as to avoid the oil being suctioned into vacuum pump in the operation.
2)When oil quantity is lower than the level of the float ball, then the oil pump will start-up automatically and pump oil into the
vacuum vessel, when oil is up to the floating ball level, pump will stop automatically.
6. Digital intelligent temperature controller can set upper and lower limits for heating temperature, stable control and direct
temperature display. The temperature probe detects the oil temperature directly, the temperature measurement is sensitive and accurate, and there is no hysteresis.
7. The machine is provided with overpressure, overcurrent, overload and anti-dry protection measures to ensure the safe operation.
Optional Parts
1) Imported parts (Optional imported brand vacuum pump, motor pumps, filter components,
2) Electrical components, instruments)
3) Smart Flowmeter (optional)
4) It can be made into a fully enclosed, shed cover type, car type
5) According to the working site, select the appropriate explosion-proof grade BT4 or CT4ExdII ExdI, on-line water meter (optional), BK pressure plate frame oil filter (in practice, can be matched, can make the oil purifier machine efficiency Improve, and reduce the consumption rate of filter consumables) (optional)
Services:
1. whole process install，guide，training by our overseas service
2. Maintance and replacement service，when necessary
3. Reminding for the service life of the wearing parts/paid to provide
4. Installing guide for customers from both China and abroad
5. Tracking service for products for 12 months，lifetime service
6. Provide for final oil’s market suggestions

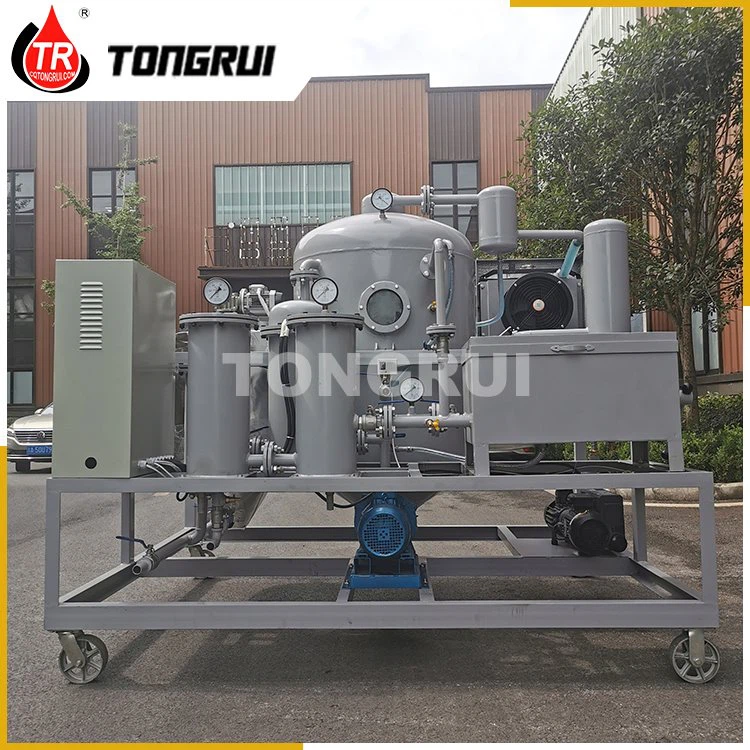

We create world-class Economical Portable Transformer Oil Treatment Machine Zy-10 by integrating and learning from international advanced technologies. We strive to make effective use of our corporate strengths to carry out social responsibility activities in line with our business needs. We manage and mitigate product development risks, reduce transaction time and improve product quality.
Hot Tags: oil purifier machine, China, suppliers, manufacturers, customized, wholesale, price, Hydraulic Oil Purifier, Hydraulic Oil Purifier Machine, Engine Oil Recycling Machine, Turbine Oil Purification Machine, Fuel Oil Purifier, Turbine Oil Purifier
