Application:

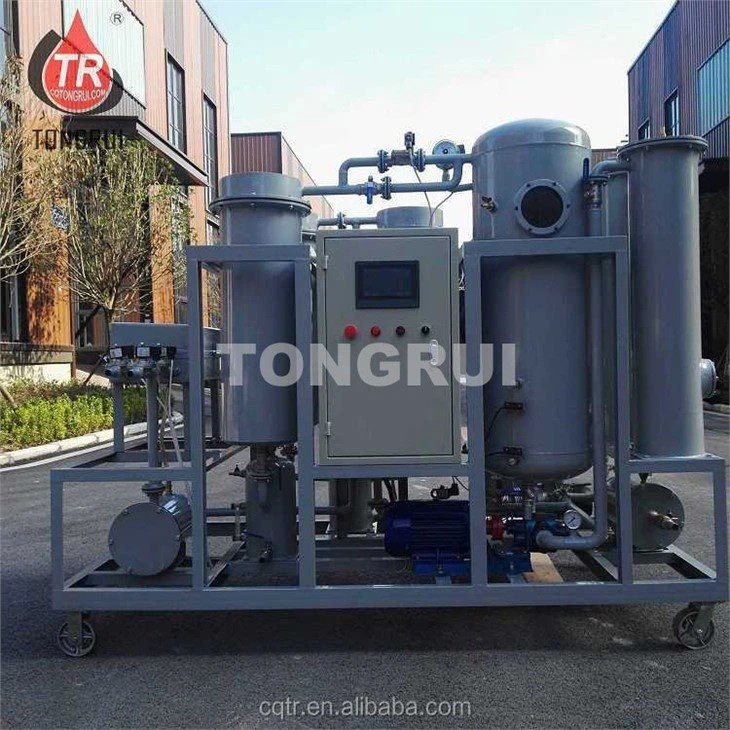

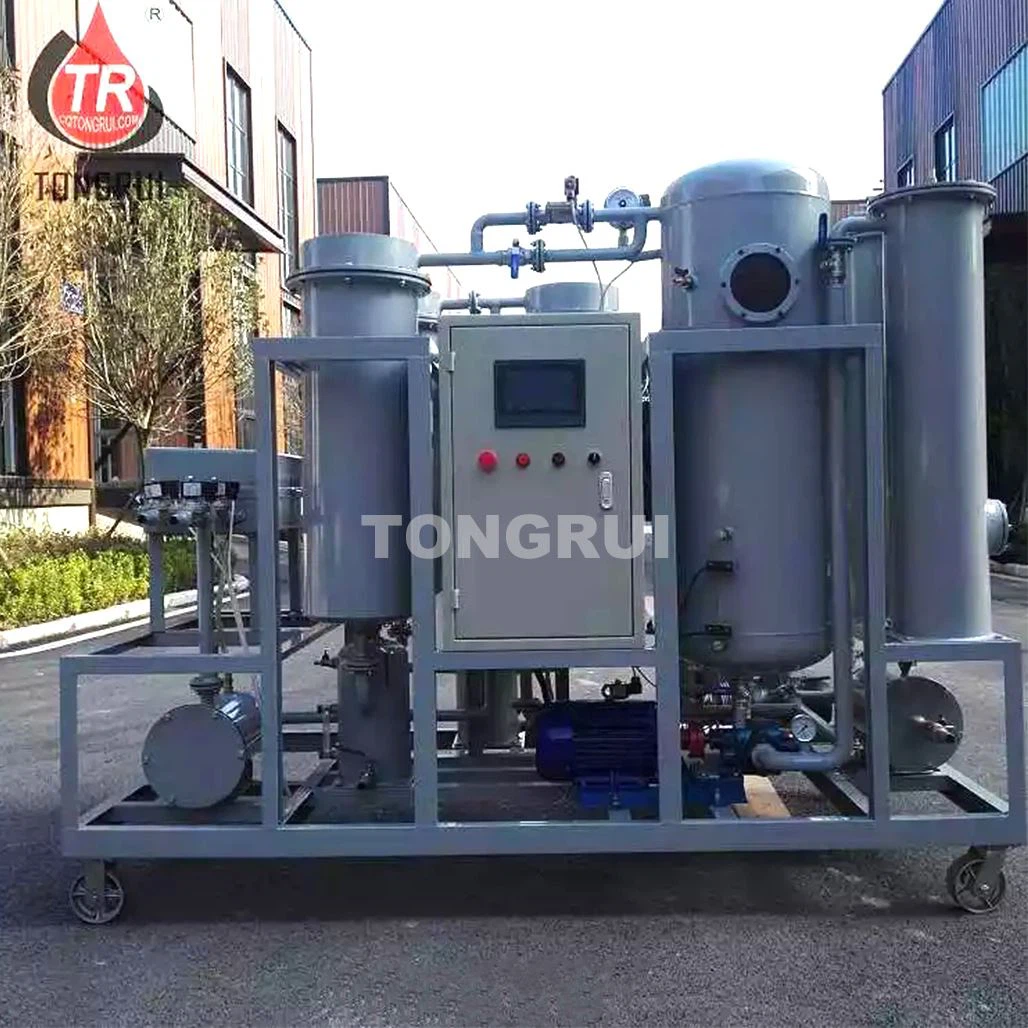

ZJC high vacuum turbine oil purifier is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This product, which can rapidly and effectively remove the water, gas and impurities according to turbine oil’s nature of high water content, easy emulsification and high impurity content. And it make the oil recover the new oil’s nature.
Technical Specification
|
Item |
unit |
ZJC-10 |
ZJC-20 |
ZJC-30 |
ZJC-50 |
ZJC-75 |
ZJC-100 |
ZJC-150 |
ZJC-200 |
|
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4500 |
6000 |
9000 |
12000 |
|
|
Vacuum degree |
Mpa |
-0.06 ~ -0.096 |
||||||||
|
Working pressure |
Mpa |
≤0.3 |
||||||||
|
Fault free |
H |
≥4000 |
||||||||
|
Continuous working time |
H |
≥150 |
||||||||
|
Working temperature |
°C |
40 ~ 70 |
||||||||
|
Heating power |
kW |
15 |
18 |
30 |
45 |
60 |
72 |
72 |
84 |
|
|
Total Power |
kW |
17 |
20 |
33 |
49 |
66 |
79 |
81 |
97 |
|
|
Diameter of inlet&outlet |
DN |
25 |
25 |
25 |
32 |
42 |
42 |
50 |
50 |
|
|
weight |
Kg |
500 |
530 |
570 |
780 |
800 |
960 |
1050 |
1550 |
|
|
Dimensions |
L |
mm |
1300 |
1350 |
1450 |
1500 |
1500 |
1800 |
1800 |
1800 |
|
W |
mm |
1000 |
1000 |
1100 |
1150 |
1000 |
1500 |
1650 |
1500 |
|
|
H |
mm |
1450 |
1450 |
1500 |
1650 |
1750 |
1800 |
1900 |
2000 |
|

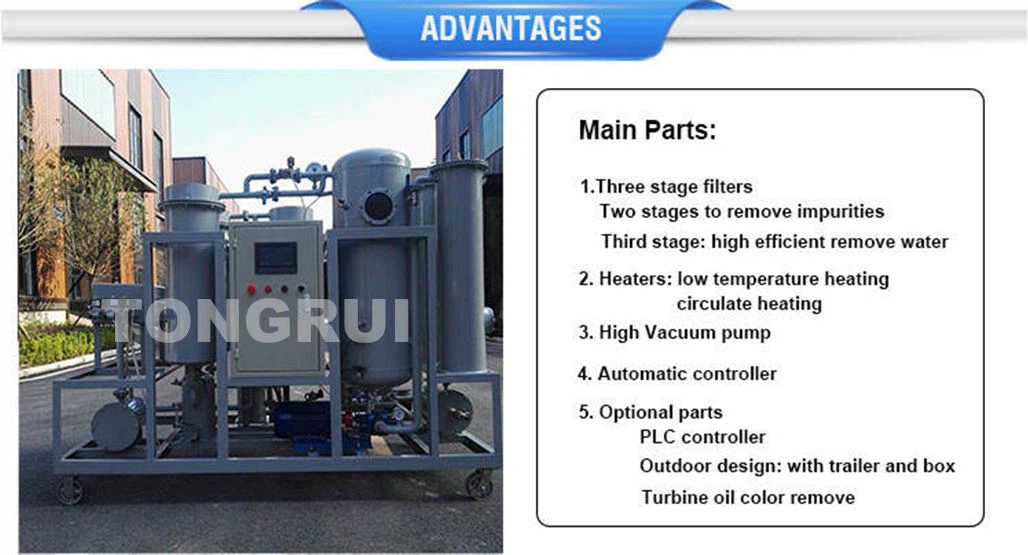

Features:
1. Dewater and break emulsification efficiently. Remove a quantity of water and moisture. As adopt break emulsification, the oil turn to be clear. It used the coalescence and separation technique and Duplex stereo-evaporation technology which has strong ability to break emulsion and remove water from the oil.
2. Precise multi-stage filtration system help removes different kinds of impurities.
3. Advanced Double- infrared fluid level auto-control system and pressure protection device make operation simple and safe.
4. ZJD high vacuum turbine oil purifier can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.

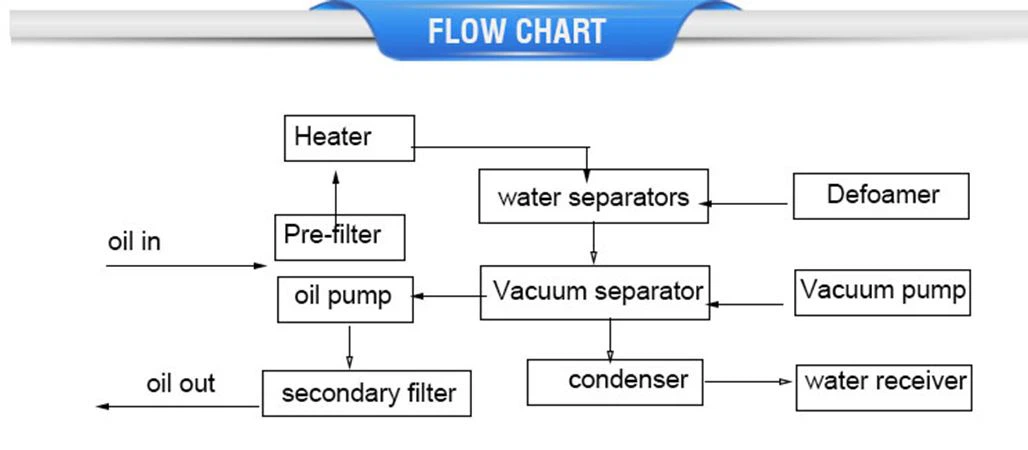

Working principles
When high vacuum turbine oil purifier works, the waste oil remove large capacity of impurities through special filters. Use a special water separator and personalized vacuum separator, which used the oil-wet hydrophobic technology and "cavitation" principle, the waste oil in a vacuum separator expanded to several hundred times larger than the original, and "cavitation"system also allows the oil evaporation surface area is increasing, and evaporated interface constantly updated, so that the water in the oil quickly vaporized under low heat, high vacuum, large surface, high pumping speed conditions exhausted by the vacuum system.
The water and gas discharged from the upper portion of the vacuum separator, after twice cooling and dehumidification cooling system, and finally discharged from the vacuum pump. The dry oil in vacuum separator which dewatered by vacuum pump, and become positive pressure through the oil pump. After fine filtration, the clean oil discharged from outlet valve after cooling. Then the process is over.
Oil index after treating
|
Water content |
≤80ppm |
|
Gas content |
≤0.1% |
|
cleanness |
≤5µm(or as per requirement) |
|
Demulsification Value |
≤10 min |
Services:
1. whole process install，guide，training by our overseas service
2. Maintance and replacement service，when necessary
3. Reminding for the service life of the wearing parts/paid to provide
4. Installing guide for customers from both China and abroad
5. Tracking service for products for 12 months，lifetime service
6. Provide for final oil’s market suggestions
