Scope of application

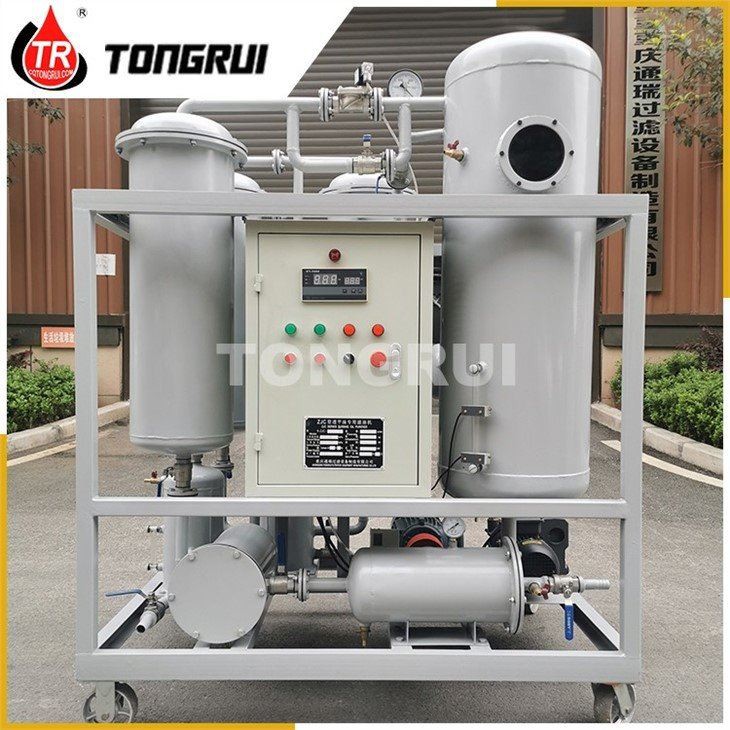

ZJC special turbine oil purifier for turbine oil is suitable for the purification of turbine oil (turbine oil), lubricating oil and cooling oil that remove a large amount of moisture and impurities. Turbine oil purifier is an indispensable equipment for power plants and hydropower stations.
Features:
1) Strong oil-water separation ability, demulsification, deep-level precision filter material can remove fine particles in oil.
2) Large flow, high purification efficiency, suitable for rapid purification of oil in large-capacity systems.
3) Reverse osmosis oil-water separation and purification system + rapid three-dimensional evaporation technology, multi-level oil-water separation technology, quickly separate water, gas and impurities in oil.
4) This machine is equipped with pressure protection, automatic temperature control heating, automatic separation of condensed water, and drainage during line operation. The operation is simple, safe and reliable.
5) Using high-quality oil-water separation filter material, it has strong oil-water separation ability, corrosion resistance, high temperature resistance, high mechanical strength, can remove impurities with precision, and has a long service life.

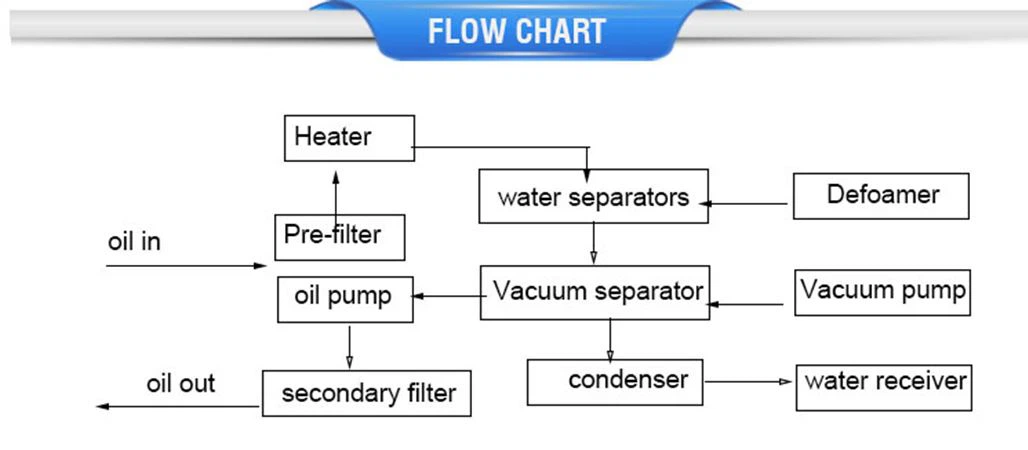

Working principle
When the turbine oil purifier works, the waste oil remove large capacity of impurities through special filters. Use a special water separator and personalized vacuum separator, which used the oil-wet hydrophobic technology and "cavitation" principle, the waste oil in a vacuum separator expanded to several hundred times larger than the original, and "cavitation"system also allows the oil evaporation surface area is increasing, and evaporated interface constantly updated, so that the water in the oil quickly vaporized under low heat, high vacuum, large surface, high pumping speed conditions exhausted by the vacuum system.
The water and gas discharged from the upper portion of the vacuum separator, after twice cooling and dehumidification cooling system, and finally discharged from the vacuum pump.
The dry oil in vacuum separator which dewatered by vacuum pump, and become positive pressure through the oil pump. After fine filtration, the clean oil discharged from outlet valve after cooling. Then the process is over.
Oil after recycling
Technical Parameter
|
Item |
unit |
ZJC-10 |
ZJC-20 |
ZJC-30 |
ZJC-50 |
ZJC-75 |
ZJC-100 |
ZJC-150 |
ZJC-200 |
ZJC-300 |
||
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4500 |
6000 |
9000 |
12000 |
18000 |
||
|
Vacuum degree |
Mpa |
-0.06 ～ -0.096 |
||||||||||
|
Working pressure |
Mpa |
≤0.3 |
||||||||||
|
Fault free |
H |
≥4000 |
||||||||||
|
Continuous working time |
H |
≥150 |
||||||||||
|
Working temperature |
℃ |
40 ～ 70 |
||||||||||
|
Heating power |
kW |
9 |
18 |
30 |
36 |
60 |
72 |
108 |
144 |
144 |
||
|
Total Power |
kW |
11.5 |
17.5 |
33 |
39.5 |
66 |
79 |
115 |
153.5 |
154 |
||
|
Diameter of inlet&outlet |
DN |
25 |
25 |
25 |
32 |
42 |
42 |
50 |
50 |
50 |
||
|
weight |
Kg |
500 |
530 |
570 |
780 |
800 |
960 |
1050 |
1150 |
1350 |
||
|
Dimensions |
L |
mm |
1300 |
1350 |
1450 |
1500 |
1500 |
1800 |
1800 |
1800 |
2500 |
|
|
W |
mm |
1000 |
1000 |
1100 |
1150 |
1000 |
1500 |
1650 |
1500 |
1600 |
||
|
H |
mm |
1450 |
1450 |
1500 |
1650 |
1750 |
1800 |
1900 |
2000 |
2200 |
||
|
Oil index after treatment |
||||||||||||
|
Water content |
80ppm |
|||||||||||
|
Gas content |
≤0.1% |
|||||||||||
|
cleanness |
≤5µm（or as per requirement） |
|||||||||||
|
Demulsification Value |
≤10 min |
|||||||||||
