Application:
Hydraulic oil purification machines for lube oil recycling are largely used in the fields of electric power, petroleum, natural gas, mine, machinery manufacturing, steel, metallurgy, chemical industry, railway station, aviation and shipping etc. large enterprise.
Technical Parameter
|
Product Specifications |
||||||||
|
Index name |
Unit |
ZJD-10 |
ZJD-20 |
ZJD-30 |
ZJD-50 |
ZJD-75 |
ZJD-100 |
ZJD-150 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4500 |
6000 |
9000 |
|
vacuum degree |
Mpa |
-0.06~0.095 |
||||||
|
working pressure |
Mpa |
≤0.4 |
||||||
|
temperature range |
C |
0-100 |
||||||
|
water content |
PPM |
≤80 |
||||||
|
cleaness |
NAS |
≤6(class) |
||||||
|
gas content |
% |
≤0.1 |
||||||
|
impurities content |
|
3-5micro |
||||||
|
power supply |
|
380V/220V |
||||||
|
noise |
dB(A) |
≤70 |
||||||
|
demulsifying value |
MIN |
NEW OIL |
||||||
|
heating power |
KW |
36 |
40 |
45 |
72 |
80 |
90 |
120 |
|
total power |
KW |
38 |
42 |
47 |
75 |
87 |
101 |
135 |
|
diameter |
MM |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
|
weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
Features:
1 Effectively remove the iron, flake, dust, impurities, water and organic substance from the inferior oil. Moreover, it can eliminate organic and inorganic acid to recover the performance of lubricant oil.
2 Strong demulsifying capability, which could easy to separate the massive moisture contents, also easy to get rid of the little tiny water from oil.
3 Adopt high precision and stainless steel FH rectangle filtration system that import from Japan.
4 Utilize Tongrui's own invented technology of H, P, M macromolecule material, which can reduce 1 or 2 color code of oil, and especially fit to high viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil etc.

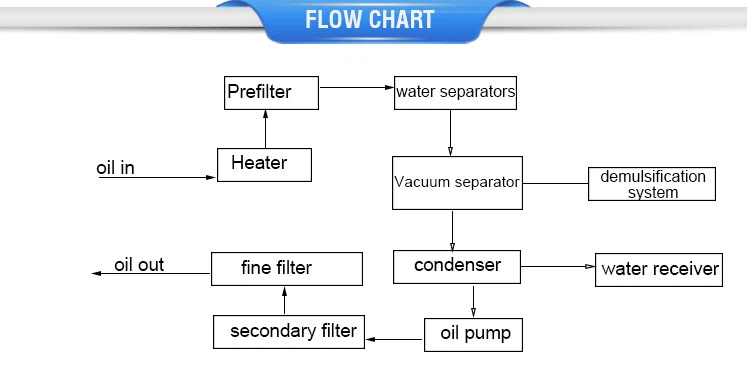

Working principle

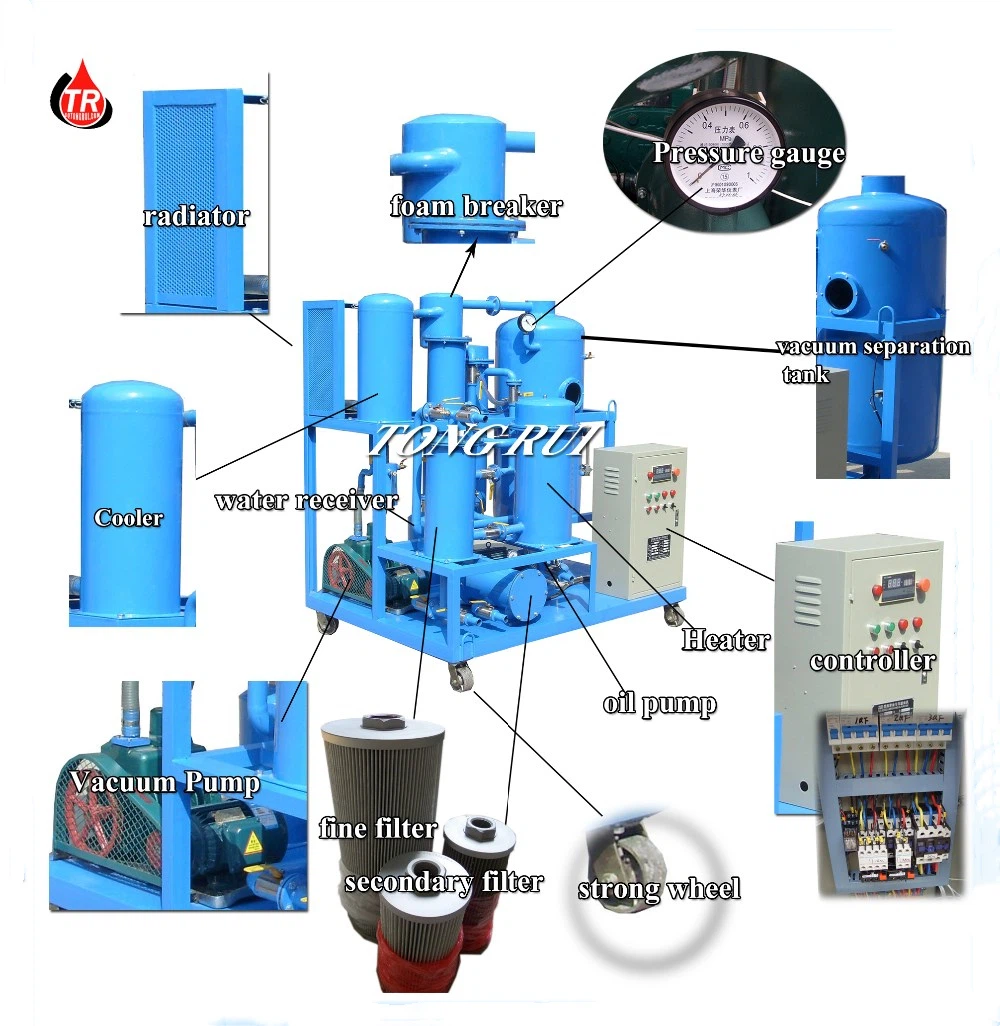

When the hydraulic oil purification machine is working, the polluted oil enters the heater through the inlet under the action of the vacuum suction of the external atmospheric pressure, the heated oil enters the prefilter, the large particles of impurities are filtered out, and then the oil enters the water separator for vacuum separation. The device flows through a special divergent device. The diffuser creates a large surface area per unit volume of oil, exposing the contaminated oil to a vacuum with very low relative humidity, thereby removing water, air and gas from the oil. The mixed gas formed by the evaporated water vapor and gas is condensed into liquid through the water tank and the cooler, and enters the water storage tank together, and the remaining gas is pumped out by the vacuum pump. The oil that has removed the water is sent to the second-stage filter element and the fine filter by the oil discharge pump to remove particulate impurities, that is, to purify the oil. A purification process is completed. According to the amount of water content, multiple cycles are required to completely remove the water.
Oil index after treatment
|
Oil index after treatement |
||
|
Demulsification |
min |
≤15min |
|
Gas content |
% |
≤0.1% |
|
water content |
% |
Trace(no) |
|
cleanness |
nas |
≤6 |
|
precision |
µm |
≤µm(or customer advice) |
Personnel advantage
Doing oil recycling machine manufacturer for more than 20years, professional design team, research and develop a variety of oil recycling machines and supporting solutions for different kinds of oil, and have obtained a number of patent certificates.

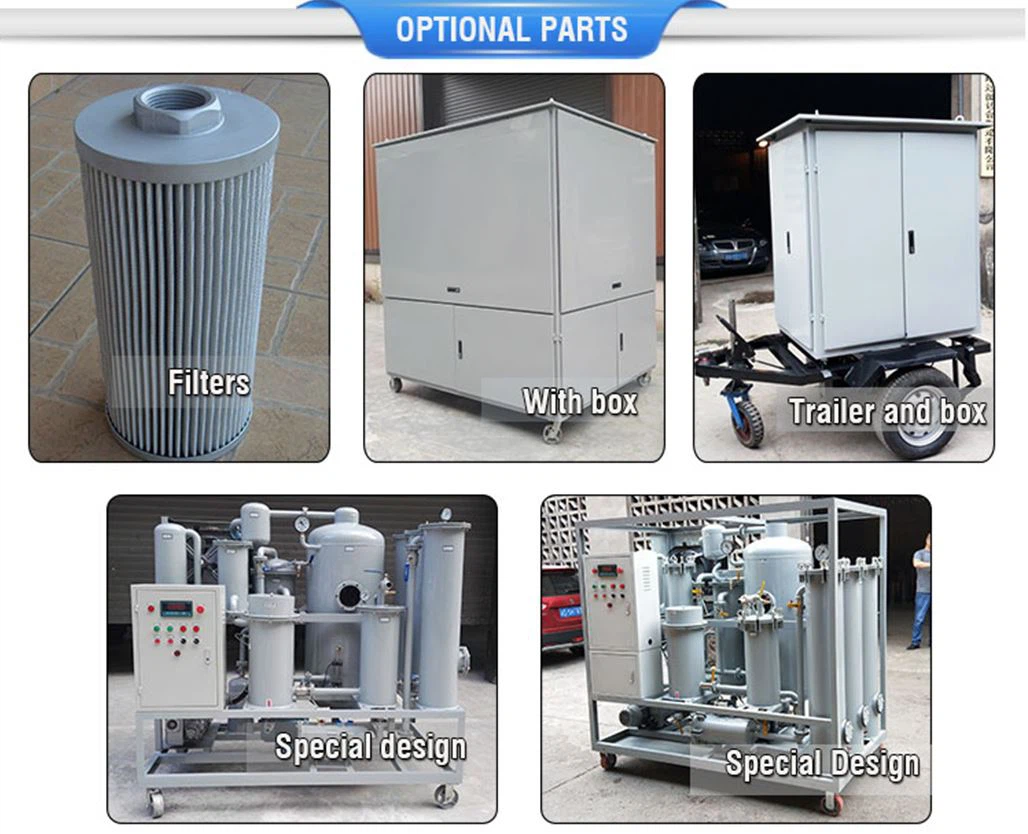

Optional Customized Design As Per Client’s Requirements:
(1) PLC intelligent control with touch screen operation and operation status dynamic display.
(2) Online moisture tester, online particle counter and online flow meter with adding-up function.
(3) Frequency converter for free adjustment of flow rate
(4) The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of the canvas, etc.
Payment advantage
Paid by T/T , L/C, Weston union, Paypal ...
Delivery time:
1~2 work days if it is in stock. If not in stock, then 5~7work days
Shipping terms:
By ship, truck, air or others
