Application:

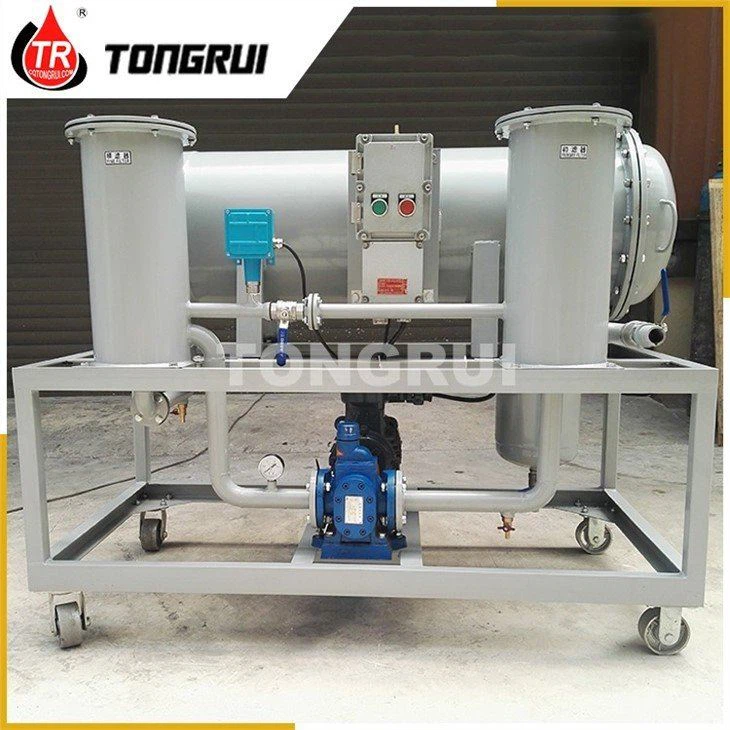

ZJD-F Oil-water separation equipment combines the high precision filtration system, demulsification and dehydration in one machine. It is without heating to remove large amounts of water, the removing water speed belongs to the quickest in the domestic market, which can remove large water out from the oil. The mechanical impurities in the oil can filter the oil reach the national standard. Movable design, easy to use, suitable for high water content of light oil and fuel (diesel, gasoline, kerosene, etc.).
Technical specification:
Product Specifications | |||||||||
Item | Unit | ZJD-F-10 | ZJD-F-20 | ZJD-F-30 | ZJD-F-50 | ZJD-F-80 | ZJD-F-100 | ZJD-F-200 | ZJD-F-300 |
Flow rate | L/H | 10 | 20 | 30 | 50 | 80 | 100 | 200 | 300 |
Working pressure | Mpa | ≤0.35 | |||||||
Water content | ppm | ≤300 | |||||||
Filtering precision | µm | 3~5(or as per requirement) | |||||||
Demulsification value | min | ≤15 | |||||||
Mechanical impurities | % | 0.05~0.005(GB/T511) | |||||||
WorKing Noise | dB(A) | ≤75 | ≤82 | ||||||
Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
Equipment Weight | Kg | 85 | 100 | 130 | 150 | 180 | 200 | 380 | 560 |
Working principle
The waste oil first enter the 1st filter, big impurities will be remove, and then the oil through the oil pump into the fine
filter to remove the small impurities, after that, the oil enter aggregation separator (adopt the molecule separating technology)
and water separator, separate the dissolved water and free water.
Features:
1) High efficient dehydration. Use special oil filters, the dewatering efficiency is 25times higher than other oil filters.
2) High efficient to remove impurities. Adopt composite microporous filtration material, high temperature resistance, corrosion resistance,strong mechanical strength, long life span, to deeply remove the tiny particles.
3) Easy-to-operate, water can be discharged online automatically without the presence of duty operators
4) The Oil-water separation equipment is designed perfect protection device. Through all the systems of the machine, which can protect the temperature, pressure, vacuum, power outages and so on, to achieve a comprehensive protection. So that it can effectively prevent accidents ensure the normal operation of equipment.
5) No need heating, fully guaranteed oil additives are not cracking, not bad.
Delivery:
It is packed in wooden case or bamboo wooden case. It can be delivered after full payment. Usually the machine is in stock. Since the machine is hot sale, so usually we have those in stock. But if your power supply is different, then it needs about 1work day more to change a little, suitable for your power supply.
