ZJB transformer oil filtration plant can degas, dewater, removing the impurities of insulting oil quickly and effectively. It improves the value of voltage valve, and make sure electrical equipment work safely. The power station and mine mainly use the machine to deal with transformer oil mutual inductor oil, switch oil and so on.
Machine Parameter：
|
ITEM |
UNIT |
ZJB-10 |
ZJB -20 |
ZJB -30 |
ZJB -50 |
ZJB -75 |
ZJB -100 |
ZJB -150 |
ZJB -200 |
ZJB -300 |
|||||||||||
|
Flow Rate |
L/H |
600 |
1,200 |
1,800 |
3,000 |
4,500 |
6,000 |
9,000 |
12,000 |
18,000 |
|||||||||||
|
Vacuum Range |
MPa |
-0.065----0.098 |
|||||||||||||||||||
|
Working Pressure |
MPa |
<=0.4 |
|||||||||||||||||||
|
Temperature Range |
C |
45-80 |
|||||||||||||||||||
|
Power Supply |
V |
-20Hz 380V (or as needed) |
|||||||||||||||||||
|
Working Noise |
dB |
<=75 |
|||||||||||||||||||
|
Water Content |
PPm |
<=5 after treat |
|||||||||||||||||||
|
Gas Content |
% |
<=0.1 after treat |
|||||||||||||||||||
|
Impurities size |
um |
<=5 after treat |
|||||||||||||||||||
|
Breakdown Voltage |
Kv |
65KV after treat |
|||||||||||||||||||
|
Heating Power |
Kw |
9 |
15 |
18 |
30 |
50 |
60 |
80 |
100 |
220 |
|||||||||||
|
Total power |
Kw |
11 |
17 |
21 |
33 |
54 |
65 |
102 |
125 |
250 |
|||||||||||
|
Inlet or outlet |
Mm |
DN25 |
DN25 |
DN25 |
DN32 |
DN42 |
DN42 |
DN50 |
DN60 |
DN60 |
|||||||||||
|
Net Weight |
Kg |
240 |
260 |
280 |
310 |
850 |
730 |
1150 |
1350 |
1800 |
|||||||||||
|
Size(depends on goods) |
L |
1500 |
1050 |
1150 |
1200 |
1300 |
1700 |
1600 |
1600 |
2000 |
2200 |
||||||||||
|
W |
1100 |
750 |
800 |
800 |
900 |
1150 |
1200 |
2200 |
1500 |
1500 |
|||||||||||
|
H |
1750 |
1400 |
1450 |
1500 |
1600 |
1800 |
1850 |
2000 |
2200 |
2400 |
|||||||||||
Feature:
◆To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
◆Enhance the value of breakdown voltage greatly..
◆Easy handling and maintenance.
◆Online work
◆Lower maintenance and replacement expenses.
◆High efficiency and effectiveness.
◆Small size, light weight, low noise
◆Various sizes and configurations (shield) available.
◆Low maintenance and replacement expenses.
◆Low operation cost.
◆High regeneration rate.
◆Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.
◆High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
◆Small size, light weight, low noise.
◆The oil purifier use special duplex space solid flash evaporation, can remove the water content and gas rapidly, this system need no maintain.
◆Trash extraction technology composed by reticulation filtration and high macular adsorption, use excellent quality filter, can contain a large amount of waste, encrypt progressive, high precision, more than one degrade purifier.
◆Double infrared ray liquid control automatically, control inlet and outlet the oil smoothly, to achieve man separate with machine really.
◆The oil recycling can be used absolutely and also can used with oil regeneration system, it can deacidification, decoloring, reduce the device, PH value, then enhance the insulation value of oil.
◆This machine can be used in vacuum oiling and vacuum dryness of insulation electrical device.
◆This machine has the ability of vacuum oiling and can electrification operate every degrade of transformer oil.
◆There is trinity interlock and protection device (phase protection, thrashing protection, Over pressure protection)

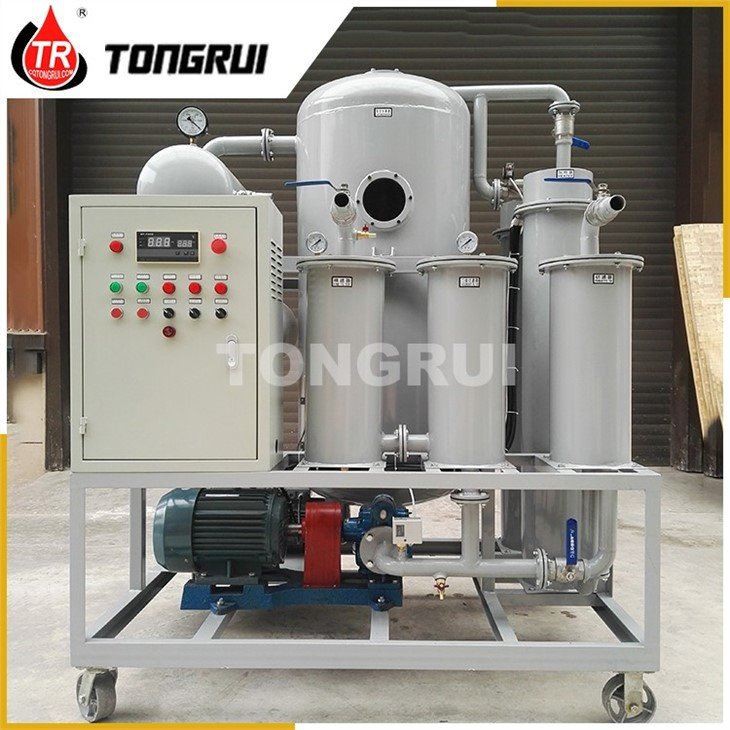

Transformer oil filtration plant pictures:
