Introduction:

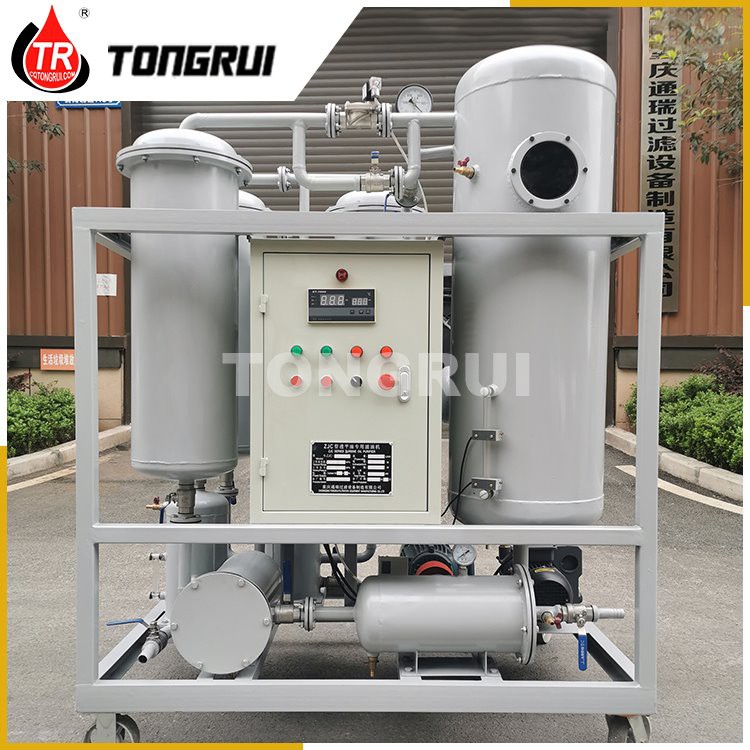

ZJC vacuum oil filter machine is applicable for thermoelectric generating set, hydroelectric generating set, nuclear power plant, industrial turbine set and other industries where the turbine oil is used. It can purify the turbine oil before the oil deteriorates. TY is good at emulsion breaking, dehydration and removing water, gas, soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil, which can recover the emulsified turbid oil to limpid and clear oil. After treatment, the oil quality index can meet the requirement of the Quality Standard GB/T7596-2000 for Turbine Oil In-Service, which ensures that the unit regulating system and lubrication system work normally, and prolongs the maintenance period.
Specification:
Item | Unit | ZJC-10 | ZJC-20 | ZJC-30 | ZJC-50 | ZJC-75 | ZJC-100 | ZJC-150 | ZJC-200 |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 |
Vacuum degree | Mpa | -0.06 ～ -0.096 | |||||||
Working pressure | Mpa | ≤0.3 | |||||||
Fault free | H | ≥4000 | |||||||
Continuous working time | H | ≥150 | |||||||
Working temperature | ℃ | 40 ～ 70 | |||||||
Heating power | kW | 15 | 18 | 30 | 45 | 60 | 72 | 72 | 84 |
Total Power | kW | 17 | 20 | 33 | 49 | 66 | 79 | 81 | 97 |
Diameter of inlet &outlet | DN | 25 | 25 | 25 | 32 | 42 | 42 | 50 | 50 |
weight | Kg | 500 | 530 | 570 | 780 | 800 | 960 | 1050 | 1550 |
Dimension (mm) | L | 1300 | 1350 | 1450 | 1500 | 1500 | 1800 | 1800 | 1800 |
W | 1000 | 1000 | 1100 | 1150 | 1000 | 1500 | 1650 | 1500 | |
H | 1450 | 1450 | 1500 | 1650 | 1750 | 1800 | 1900 | 2000 | |
Oil index after treatment | |||||||||
Water content | 80ppm | ||||||||
Gas content | ≤0.1% | ||||||||
cleanness | ≤5µm（or as per requirement） | ||||||||
Demulsification Value | ≤10 min | ||||||||
Feature:
1.It has the coalescence and separation technique, and three-dimensional flash distillation technique, and it has strong ability to break emulsion and remove water from the oil.
2. Latest chinese and international process which is an integration of gravity method, evaporation method, aggregation method, vacuum separation and mechanical purification.
3. The vacuum oil filter machine with precise multi-stage filtration system helps to remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life,Function of automatically detecting the pollution degree of filter element.
4, Optimized heating system with automatic constant temperature controller ensures that oil temperature to be even and stable.
5. An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.
6. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite, and with its lamps indicative of the conditions for operation.
7. Chain safety protection system, an interlocking of oil drainage system, vacuum system and heating system, which avoids any possible negative impacts caused by incorrect manipulation.
8. It is humanization design with low noise, deep purification and long time free maintenance to save cost from the running process.
9.Indication for changing filters, stop device for overloaded filters.
10. Stop device for electricity leakage and overloaded power to protect the motor.
11. Phase-sequence and open-phase protection,Safety control for sudden shut-down.
